Injection

Injection Scheme
Click a thumbnail image to enlarge:

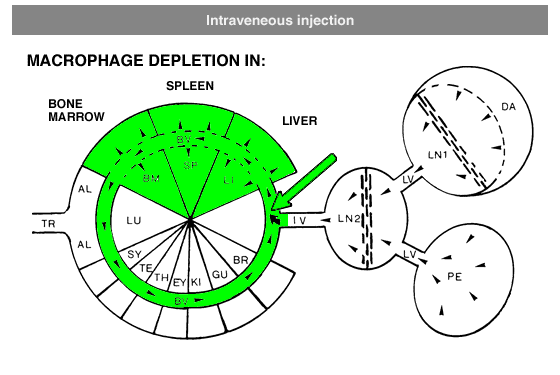

Intraveneous injection  Intraperitoneal injection  Local administration in synovium  Local administration in testis  Intratracheal instillation  Subcutaneous injection

Intraveneous

Intraperitoneal

Synovium

Testis

Intratracheal

Subcutaneous


LEGENDS:

AL = Alveoli in lung

BM = Bone marrow

BV = Blood vessels (circulation)

BR = Brain

DA = Draining area of lymph node

EY = Eye

GU = Gut (intestines)

IV = Intravenous delivery (either via injection or by delivery of lymph via Ductus Thoracicus)

KI = Kidney

LI = Liver

LN = Lymph node

LU = Lung

LV = Lymph vessels

PE = Peritoneal cavity

SP = Spleen

SY = Synovial cavity in joint
